The ASA Technik Engineering Stage 1 kit consists of a ASA TM-12 compressor. ASA is a company based in Autenzell, Germany. The founder and managing director Christian Stöber. The history of ASA is actually quite interesting.

  • 1989: a company called Cetoni began developing a new concept that combined the pros of both supercharging and turbocharging. Cetoni was an offshoot of ZF.
  • 1992: Christian Stöber founded Automobile Spezial Anfertigung (ASA).
  • 1993: The ZF Turmat supercharger made its debut at the Frankfurt Autoshow. It was renamed Cetoni Turmat when Cetoni was sold off to a machine-tools manufacturer, Bavaria-Tech. This system looks and functions like a supercharger. It is equipped with a 1 to 15 (input to output) ratio planetary gear system, which rotates a impeller wheel made for a turbocharger unit
  • 1993 to 1996: Porsche tuners like Cartronic, TechArt and Arden all used the Cetoni Turmat system.
  • 1996: Cetoni folded due to financial difficulties.
  • 1996 to 1997: ASA bought over some of the remaining parts from Cetoni and further developed the system under ASA's branding.

ASA has its own information on the TM-12 compressor here.

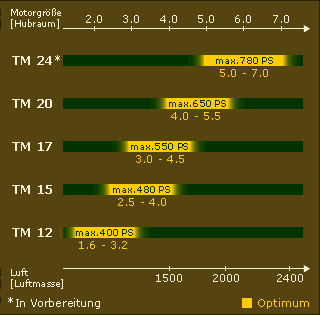

Below is a comparison of the various compressors that ASA has offered. Technik Engineering has offered the TM-12, TM-15 and TM-20 in the past.



Performance Specifications for TM-12:

Stage 1 Stage 2
2001-2006 BMW E46 330
Power: 340HP @ 6500 RPMs
Torque: 310FT.LBS @ 4750 RPMs
Boost Pressure: 6.5psi

2004-2006 BMW E46 330 ZHP
Power: 340HP @ 7000 RPMs
Torque: 300FT.LBS @ 4750 RPMs
Boost Pressure: 6.5psi

2001-2006 BMW E46 325
Power: 290HP @ 6500 RPMs
Torque: 250FT.LBS @ 5000 RPMs
Boost Pressure: 6.5psi

1999-2000 BMW E46 328
Power: 320HP @ 6500 RPMs
Torque: 280FT.LBS @ 4750 RPMs
Boost Pressure: 6.5psi

1999-2000 BMW E46 323
Power: 290HP @ 6500 RPMs
Torque: 250FT.LBS @ 5000 RPMs
Boost Pressure: 6.5psi
2001-2006 BMW E46 330
Power: 350HP @ 6500 RPMs
Torque: 320FT.LBS @ 4750 RPMs
Boost Pressure: 8.0psi

2004-2006 BMW E46 330 ZHP
Power: 350HP @ 7000 RPMs
Torque: 310FT.LBS @ 4750 RPMs
Boost Pressure: 8.0psi

2001-2006 BMW E46 325
Power: 300HP @ 6500 RPMs
Torque: 260FT.LBS @ 5000 RPMs
Boost Pressure: 8.0psi

1999-2000 BMW E46 328
Power: 330HP @ 6500 RPMs
Torque: 290FT.LBS @ 4750 RPMs
Boost Pressure: 8.0psi

1999-2000 BMW E46 323
Power: 300HP @ 6500 RPMs
Torque: 260FT.LBS @ 5000 RPMs
Boost Pressure: 8.0psi

Boost and Pulley Sizes:

On the TM-12, 3 different pulleys were offered:

Diameter
Boost
Belt Size
130mm
~9psi
6PK 2373
140mm
~8psi
6PK 2390
150mm
~6.5psi
6PK 2415



BMW Models/Years:

The ASA Stage 1 has been offered for the following E46 models:

BMW Years
Models
Upgraded Injector Size
Engine Info
1999~2000
323
24lbs/hr
M52tuB25
1999~2000
328
30lbs/hr
M52tuB28
2001~2006
325
24lbs/hr
M54B25 (excluding M56B25)
2001~2006
330
30lbs/hr
M54B30 (including ZHP)

Both automatic and manual transmissions were offered as well.





Can you rebuild a ASA Compressor?

The ASA TM-12 can be rebuilt at ASA and we recommend that ASA handles all rebuilds.

Where do I contact ASA?

ASA has joined with G-Power. So you can either ASA Contact Information:


ASA Ingenieurbüro GmbH (www.asagroup.de)

Sankt Mauritius Str. 2
86561 Autenzell

Tel.: +49 8252 90888-0 (Zentrale)
Tel.: +49 8252 90888-33 (Vertrieb)
Fax: +49 8252 90888-88
General E-Mail: info@asagroup.de

or G-Power (http://www.g-power.com)
General E-Mail: info@g-power.com

Manager Email: "Dirk Ochmann" <do@@g-power.com>

CEO Email: "Christian Stöber" <info@asagroup.de>

If you email them, please tell them you saw the information here.



I just bought a used kit. Can you help me see if I have everything?

You can take a picture of the parts and contact us here at info @ vsetrack.com.



Is Technik Engineering still around?

Unfortunately no. But you can get in touch with us if you need technical help or parts. Visi Contact above and email us.
